Broiler Chicken Cages

Parameters

Type	tdeoretical Capacity/T	Volume/m³	Self-Weight/kg	Height/m	Top Cone Plate tdickness (mm) / Quantity		Top Cone Plate tdickness (mm) / Qty					Bottom Cone Plate tdickness (mm) / Qty		Support Leg tdickness (mm) / Qty		Angle of Top and Bottom Cones
1834-1Layer	3.0	4.6	330	4.1	1.0	6	1.0				2	1.2	6	2.5	4	30°/67°
1834-2Layer	4.5	6.9	400	5.0	1.0	6	1.2	1.0			2	1.2	6	2.5	4	30°/67°
1834-3Layer	6.0	9.2	460	5.9	1.0	6	1.0	1.0			2	1.2	6	2.5	4	30°/67°
Type	tdeoretical Capacity/T	Volume/m³	Self-Weight/kg	Height/m	Top Cone Plate tdickness (mm) / Quantity		Top Cone Plate tdickness (mm) / Qty					Bottom Cone Plate tdickness (mm) / Qty		Support Leg tdickness (mm) / Qty		Angle of Top and Bottom Cones
2750-1Layer	7.5	11.6	595	4.7	1.0	9	1.0				3	1.2	9	2.5	6	30°/60°
2750-2Layer	11.0	16.8	690	5.6	1.0	9	1.2	1.0			3	1.2	9	2.5	6	30°/60°
2750-3Layer	14.3	22.0	770	6.5	1.0	9	1.2	1.0	1.0		3	1.2	9	2.5	6	30°/60°
2750-4Layer	17.7	27.2	880	7.4	1.0	9	1.2	1.0	1.0	1.0	3	1.2	9	3	6	30°/60°
Type	tdeoretical Capacity/T	Volume/m³	Self-Weight/kg	Height/m	Top Cone Plate tdickness (mm) / Quantity		Top Cone Plate tdickness (mm) / Qty					Bottom Cone Plate tdickness (mm) / Qty		Support Leg tdickness (mm) / Qty		Angle of Top and Bottom Cones
3668-1Layer	15.8	24.3	940	5.7	1.0	12	1.0				4	1.5	12	3	8	30°/60°
3668-2Layer	21.8	33.6	1070	6.6	1.0	12	1.2	1.0			4	1.5	12	3	8	30°/60°
3668-3Layer	27.9	42.9	1180	7.5	1.0	12	1.2	1.0	1.0		4	1.5	12	3	8	30°/60°
3668-4Layer	33.9	52.2	1295	8.4	1.0	12	1.2	1.0	1.0	1.0	4	1.5	12	3	8	30°/60°

Configuration

Since 2006, Hengon has been dedicated to the development of stacked broiler cages, starting with white-feather broilers. With over 15years of continuous focus on poultry cage systems, Hengon remains a leader in the research and promotion of automated stacked cagerearing for white-feather broilers, yellow-feather broilers, roosters, and meat ducks. Today, Hengon sets the industry benchmark for meatpoultry cage systems and is the preferred choice and reference for farming clients.

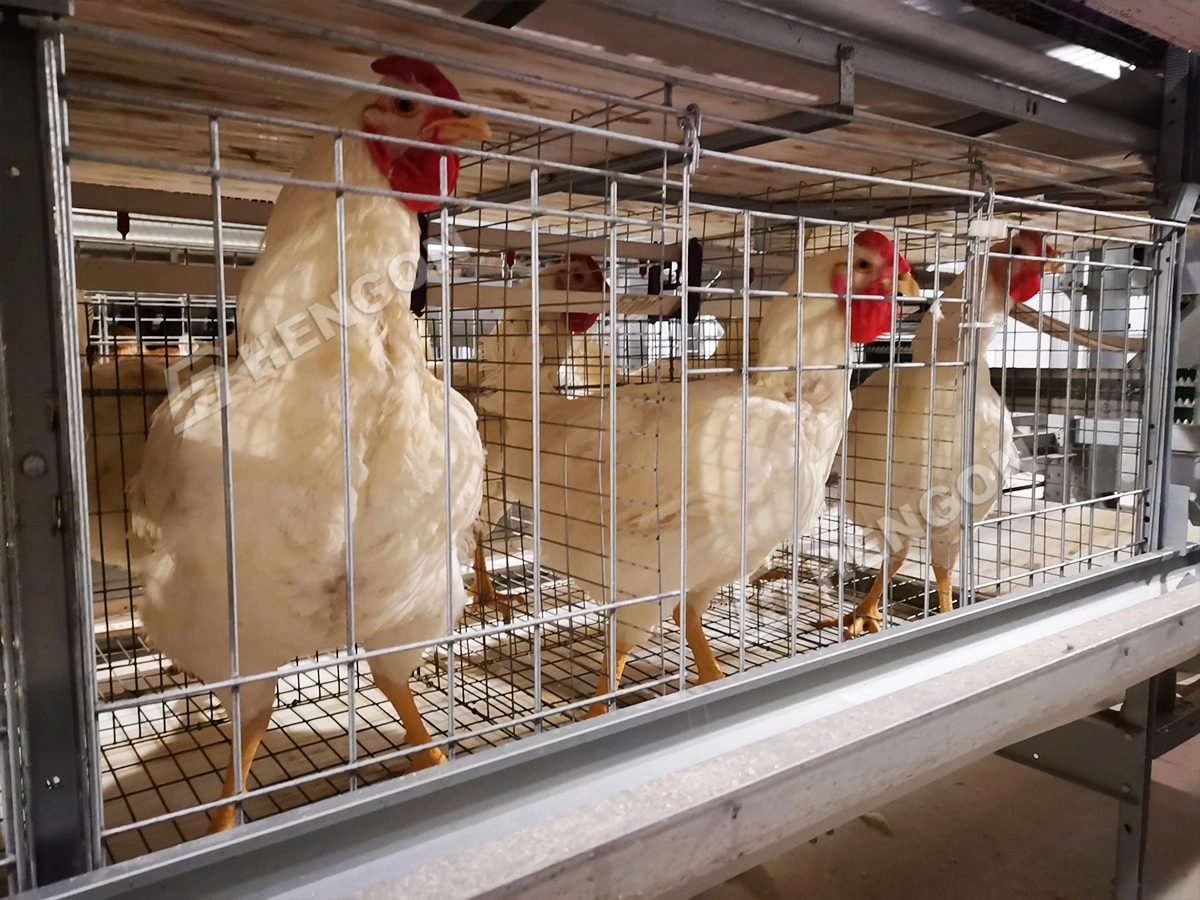

Broiler Chicken Cages

Broiler chickens, also known as “young meat chickens,” are typically raised for 7–8 weeks until they reach 1.8–2.0 kg. Their meat is tender, the skin is soft, and they are suitable for fast cooking.

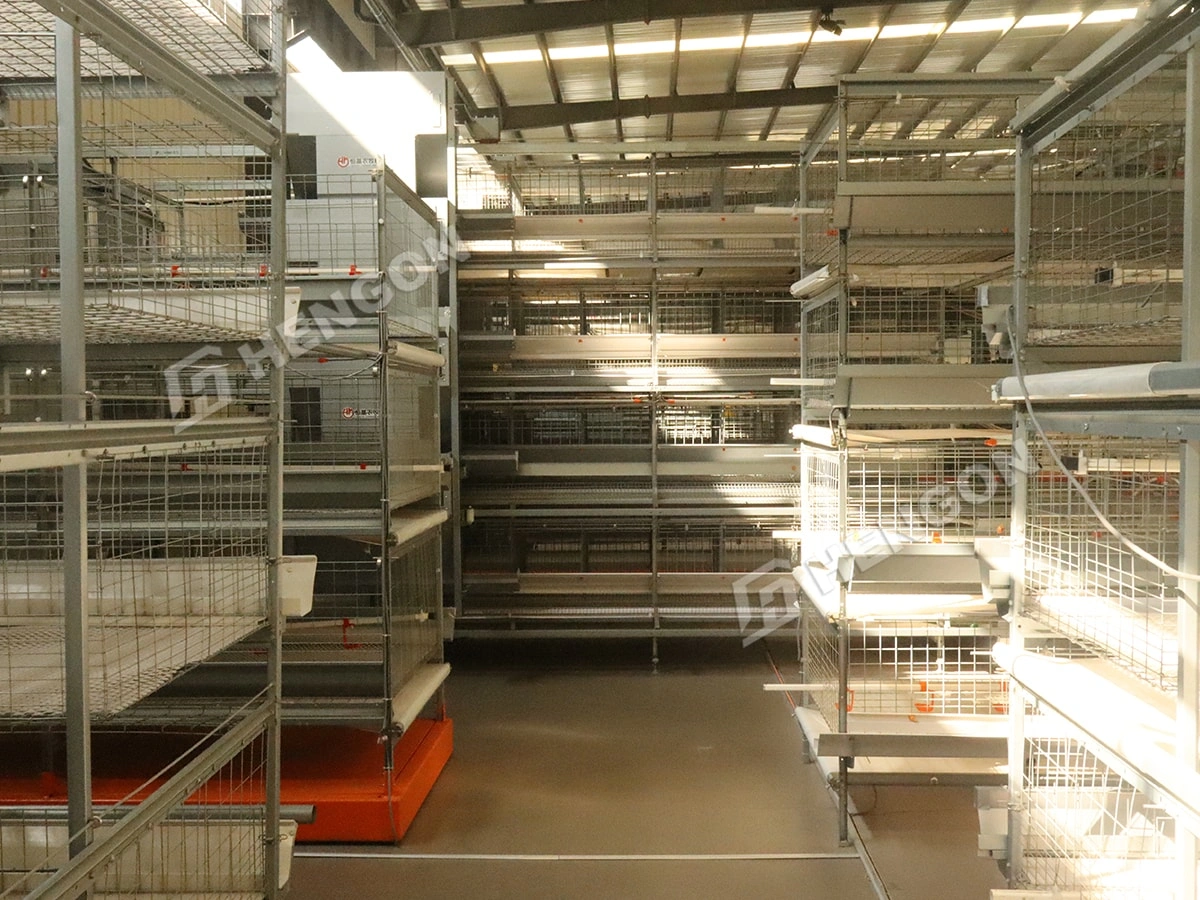

Since broilers usually stay in the same cage from chick to market weight, broiler cages are commonly designed in three tiers to allow easy handling and catching.

Modern Broiler Production Features

(1)Fast growth: A broiler weighs around 40g at hatch and reaches nearly 2kg by day 56 — about 50 times its initial weight.

(2)Short production cycle: With 7–8 weeks of raising and 2 weeks of cleaning and disinfection, farms can produce up to 5 batches per year if chicks are supplied on time.

(3)High production efficiency: Broilers are quieter and less active than layers, especially in late fattening stages because of rapid weight gain.

(4)Lower risk of coccidiosis, but issues such as leg problems and breast blisters may occur (3–4%, up to 10–15%), affecting appearance and profitability.

Product Features

(1)Customizable layout based on house design, dimensions, and flock size.

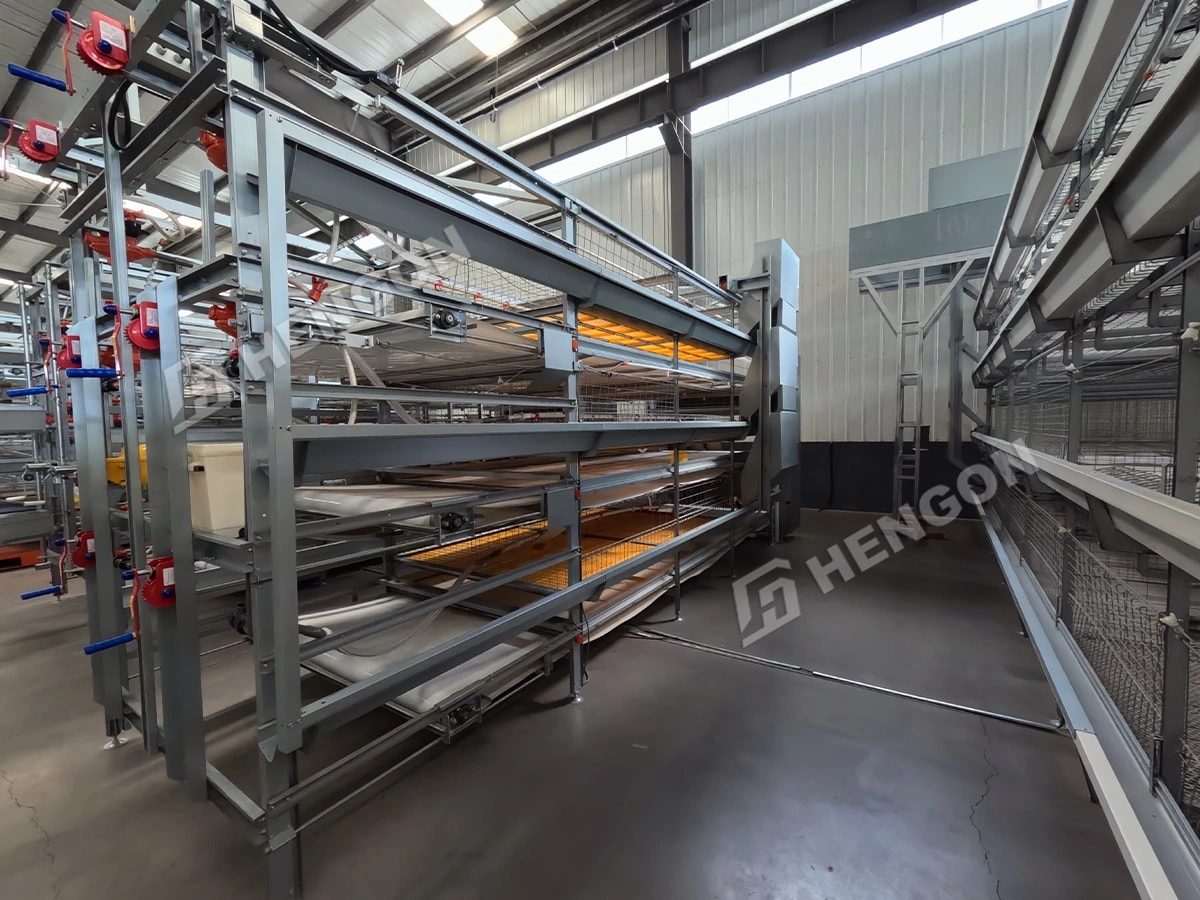

(2)Available in H-type (stacked) and A-type (step) configurations.

(3)Flat-bottom cage mesh without slope; no egg tray required. A plastic mesh is added to reduce leg problems and breast blisters.

(4)Cage mesh made of high-quality galvanized steel wire — strong, rust-resistant, durable, and clean in appearance.

(5)All plates are National-standard hot-dip galvanized (275g/m²) for long service life.

(6)Automatic welding ensures firm and precise joints.

(7)Stable structure and smooth operation.

(8)All motors use national-standard copper-core for reliability.

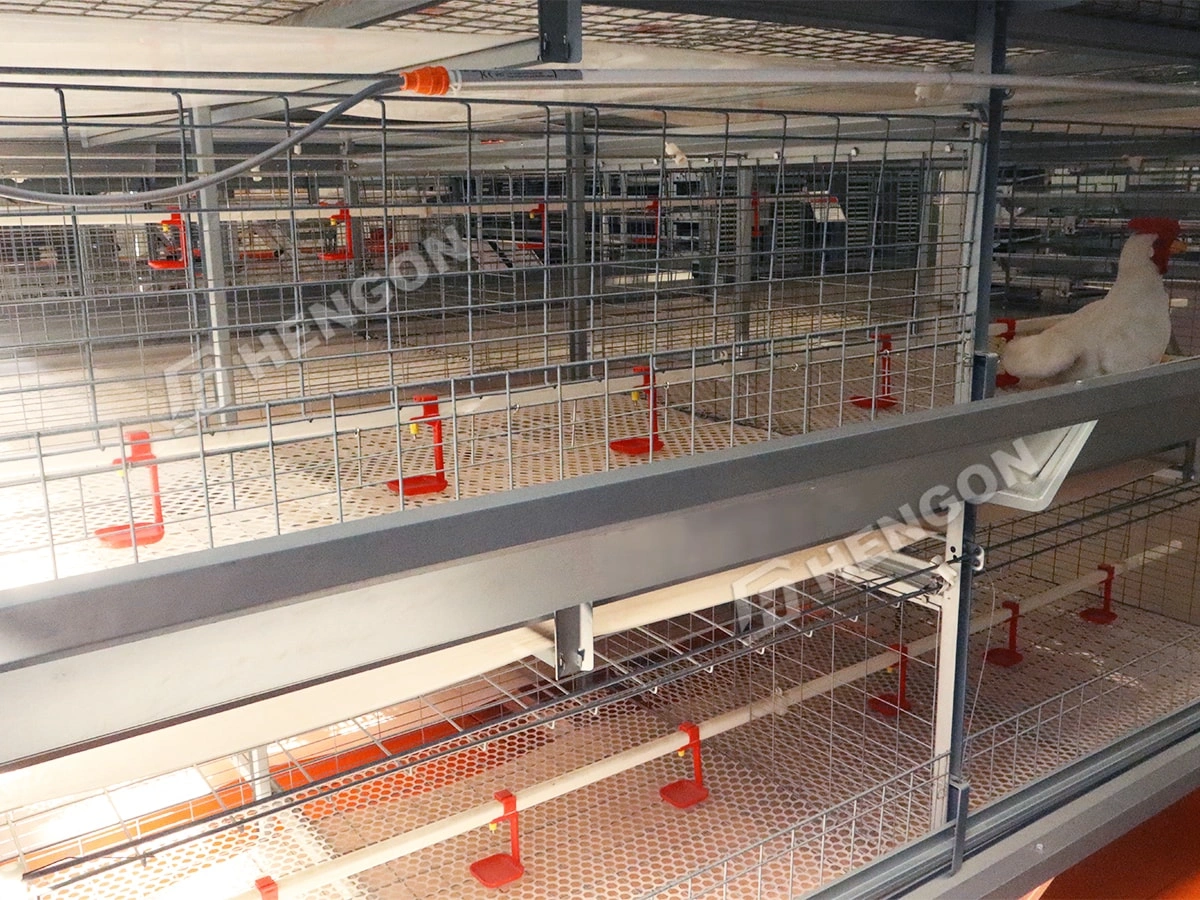

(9)Equipped with adjustable water lines, allowing height changes based on broiler age and size.
